- The equipment's heating head generates alternating magnetic field, which transfers the energy needed to complete the sealing process into the sealing liner. The eddy current generated by the alternating magnetical field generates heat in the aluminum layer of the sealing liner placed in the cap. The generated heat melts the polymer adhesive layer on the bottle side of the sealing liner onto the surface of the bottle mouth.
- The equipment is suitable for sealing both conventional caps and dispensing caps using different heads.
- The high frequency power supply and the control unit form a single, compact unit with the heating head.

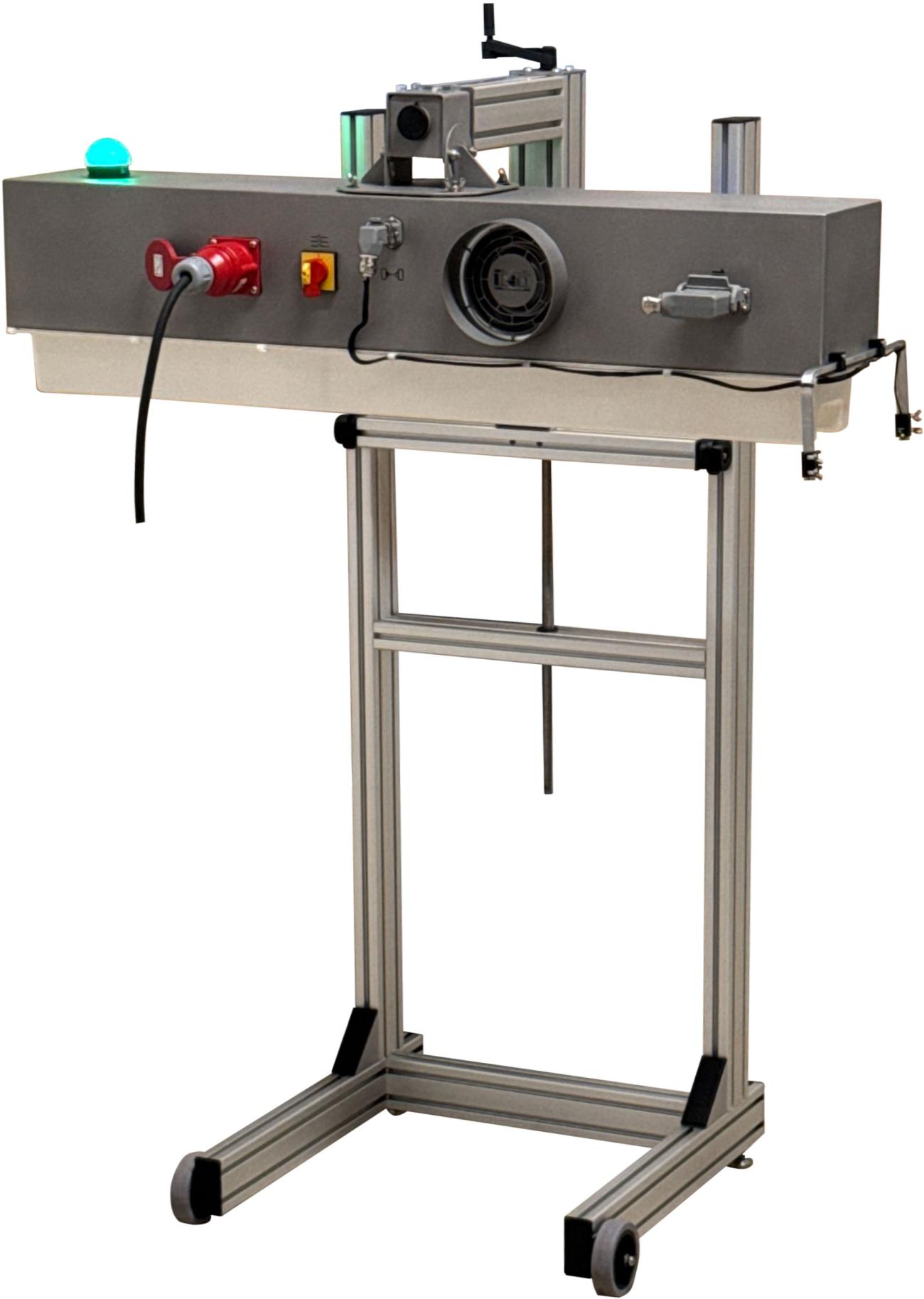

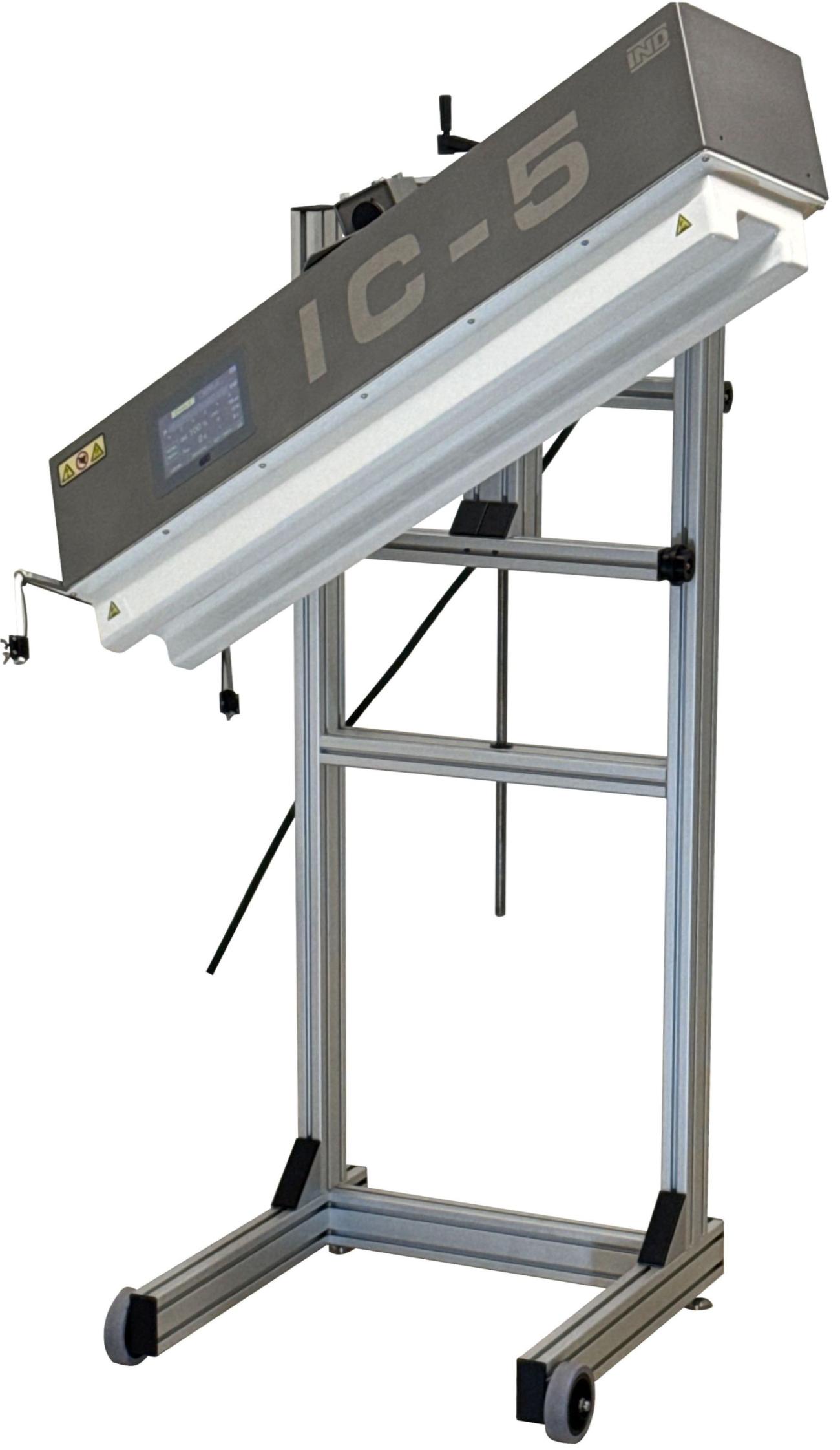

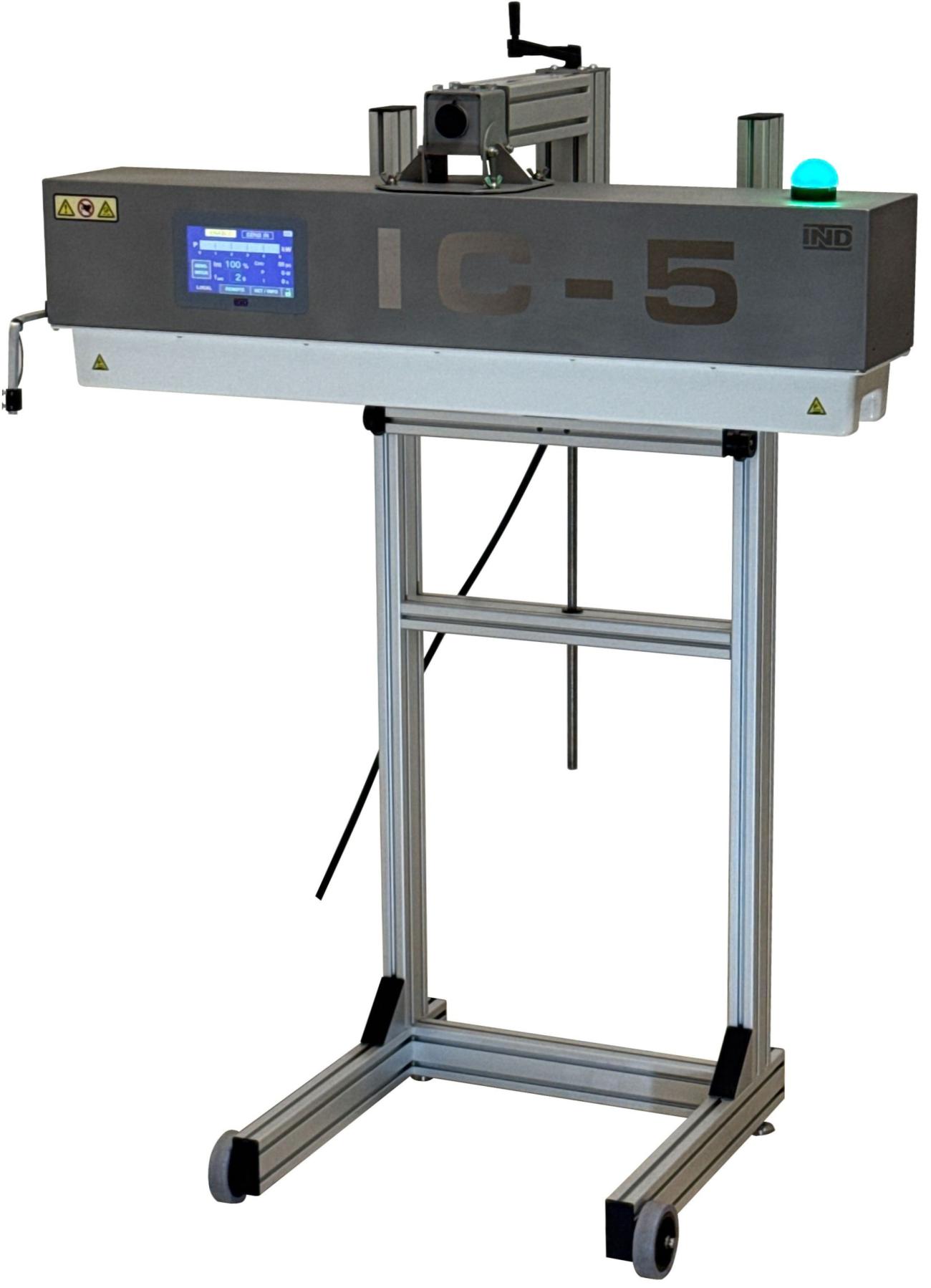

- A stand with rollers, ensuring stable fastening, accurate setting of the equipment (horizontal and vertical position as well as angle in three directions) and compensation for irregularities in the flooring, can also be ordered with the equipment.
- The structure of the equipment allows it to be built into conveyor systems, integrated into bottle and container filling lines easily and may be moved elsewhere just as simply.
- The performance and construction of the equipment enables continuous and large-scale production.
- Due to the excellent efficiency of the equipment it does not require liquid cooling even with its high cap sealing capacity. The equipment's air cooling system only requires maintenance in dust-heavy operating environments and it has a standard air technical connection for clean air cooling.
- The built-in microcontroller and its peripherals and sensors allow wide technological usage and precise, intelligent operation for the equipment. It also ensures energy efficiency and extensive self-monitoring and process control. The equipment's control measures the amount of sealing liners travelling under the heating head and controls the power accordingly, providing identical sealing strength for all bottles.

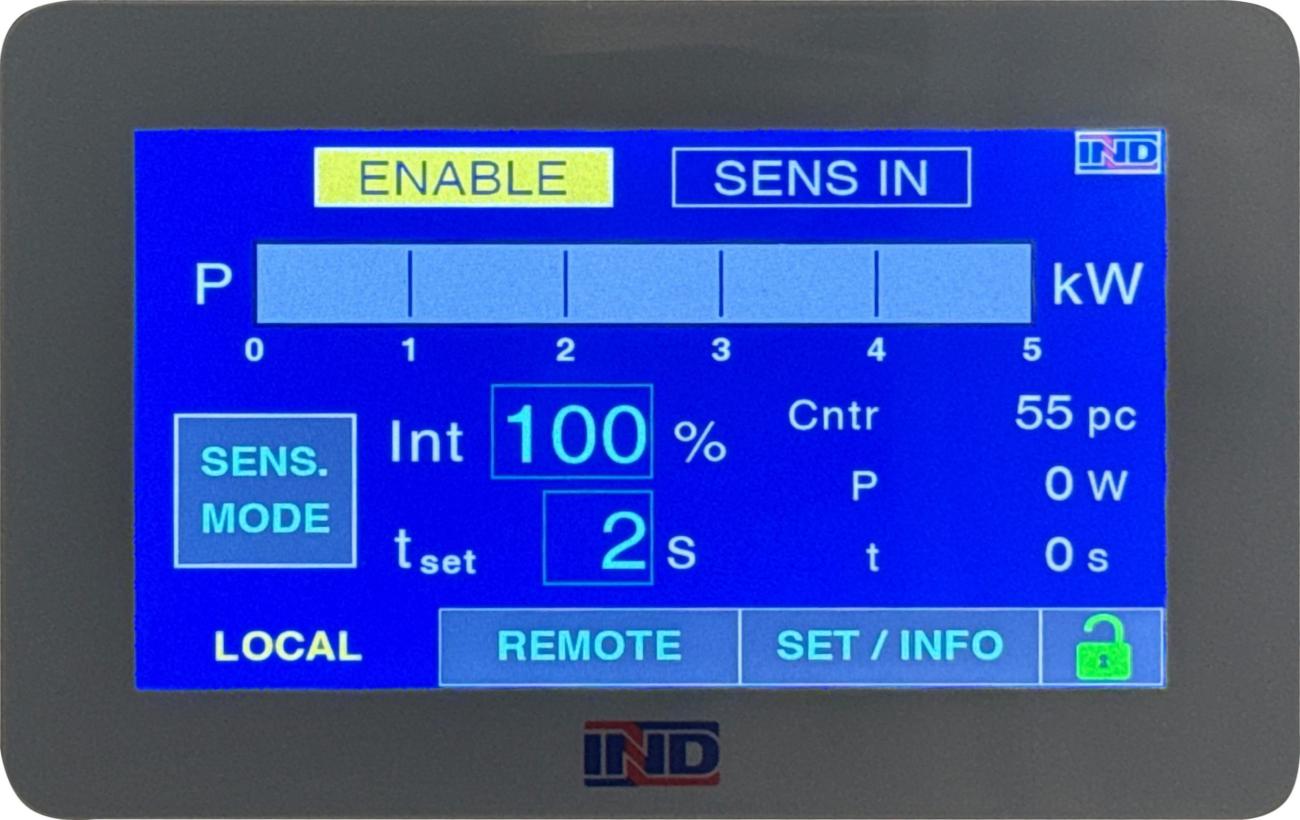

- On the touchscreen display all operating parameters can be easily inspected and modified. The operator is assisted in setting optimal operating parameters by among other things, the calibrated power meter function. The equipment is designed with a resettable workpiece counter.
- Various remote control and monitoring modes can be implemented using the equipment's control connector, allowing the equipment to be fully integrated into the control systems of packaging lines.
- We have been manufacturing induction cap sealing equipment since 2003, currently supplying a significant portion of the European market with these equipments.
24 hour repair service is provided.
We are ready to deliver customized machines upon order.
Technical Specifications
Mains: |
3×400 V, 50 – 60 Hz, 8 A |
Operation modes: |
Manual, optical sensor controlled, remote controlled |
Intensity regulation: |
10-100 % |
Maximum speed of cap under the heating head: |
40 m / minute |
Number of caps under the heating head at any one time: |
Arbitrary; intelligent, load-dependent field strength control |
Diameter of sealable bottle mouths: |
10 - 200 mm |
Cooling: |
Air cooling |
Built-in protections: |
Temperature range, mains voltage range, power, load, frequency range, etc. |
Build: |
Factory, stainless steel, aluminum, plastic composite |
IP rating: |
IP-20 |

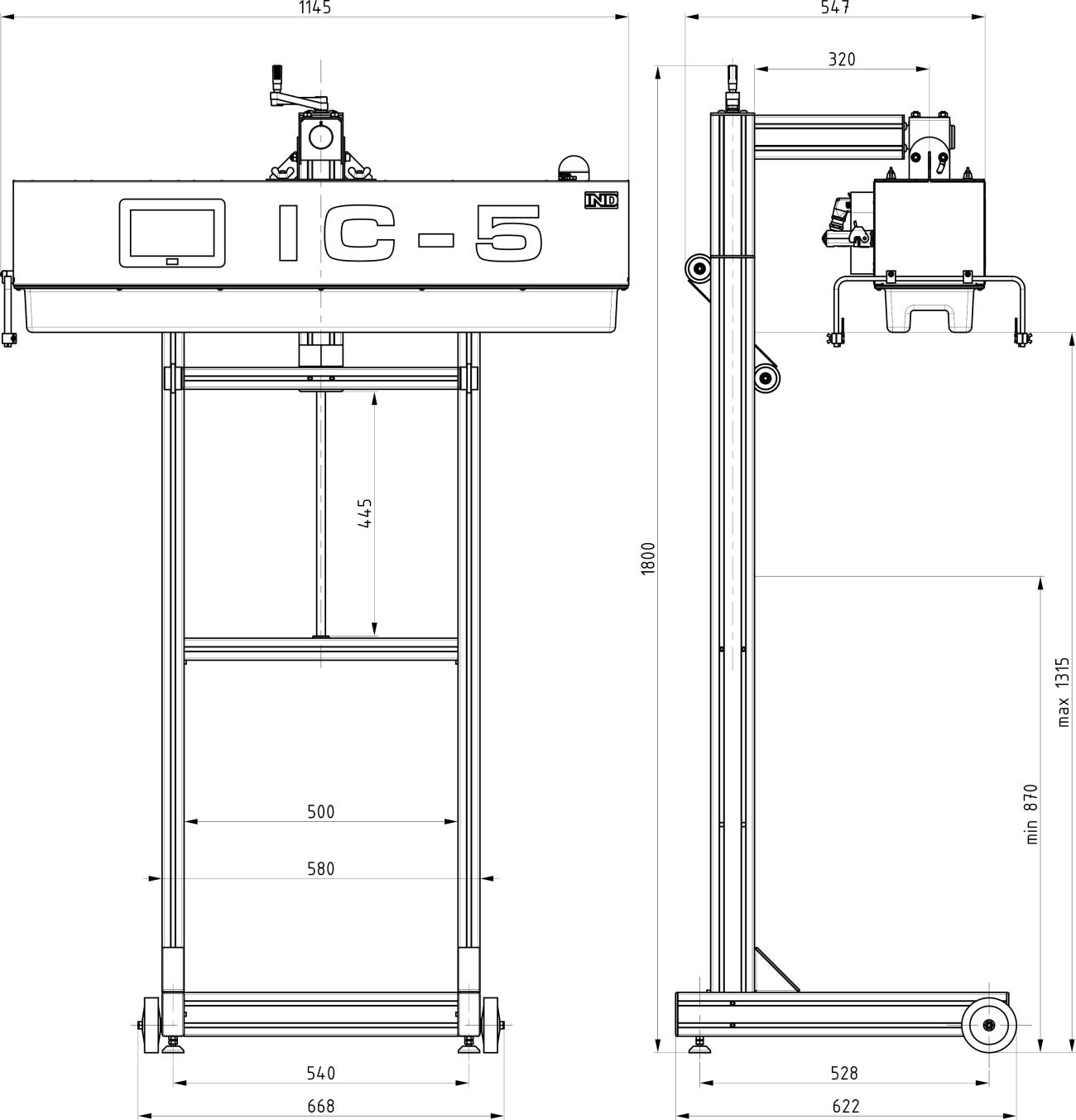

Size of the equipment: |
380×1145 mm, height 350 mm |
Weight of machine: |
23 kg |
Weight of stand: |
29 kg |
Certification |
Manufacturer's CE |
